The Official McMaster Carr Part Number List

Q

QuickMick

Guest
Some thing I just got...

Some of them are not on the list and others I thought some might want to see a picture of....

  • 90278A321 Metric 18-8 Ss Precision Socket Shldr Scrw Hex, 5mm Shoulder Dia, 5mm Shoulder L, M4 Thread
  • 6658K16 Metric Sae 841 Bronze Sleeve Bearing For 12 Mm Shaft Dia, 16 Mm Od, 20 Mm Lg
  • 91585A145 Metric 18-8 Stainless Steel Dowel Pin M6 Diameter, 10 Mm Length
  • 2988K311 Stainless Steel Metric Ball Joint Rod End M5 X 0.8 Rh Female Shank, 929 Pound Load Capacity
  • 9464K341 Viton O-ring As568a Dash Number 034
  • 9464K141 Viton O-ring As568a Dash Number 141
  • 6436K61 Two-piece Clamp-on Shaft Collar Type 303 Ss, 5/16" Bore, 11/16" Od, 5/16" Width
  • 47245K27 Diaphragm Check Valve Nylon Body/fluorosilicone Diaphragm, 1/4" Barb
  • 74965K63 Moisture-seal Polyolefin Heat-shrink Tubing 1/4" Id Before, 1/8" Id After, 48" L, Black
  • 74965K65 Moisture-seal Polyolefin Heat-shrink Tubing 1/2" Id Before, 1/4" Id After, 48" L, Black
  • 74965K61 Moisture-seal Polyolefin Heat-shrink Tubing 1/8" Id Before, 1/16" Id After, 48" L, Black
    [*]9845T103 Aluminum Hi-misalignment Spider Coupling Hub 5/16" Bore, 3/4" Outside Diameter
    [*]9845T13 Blue Shore 85a Spider For 3/4" Od Aluminum Hi-misalignment Spider Coupling Hub


Thats a good find on the coupler. I just made an order last night.
I see a ss wood screw in your pic.. Im looking for some that would work good in the Ebox closure screws.


2lick

Brap!!!
Location
Limerick, PA
That screw is intended for my ebox per another users recommendation....

Comparison it to the stock screws... it is larger but if you have a used some what worn out ebox cover these should do the trick....


2lick

Brap!!!
Location
Limerick, PA
NOTE: The one item I ordered that is on the list

Is for the Boyesen manifold and if DOES NOT FIT.

Please take it off the list so others do not order them.

Thanks


Dustin Mustangs

uʍop ǝpıs dn
Location
Holland, MI
Ok, the manifold o-rings are gone, sorry about that. Please post up the correct numbers if you figure them out.

I added your other new pn's with the exception of these three because I couldn't figure out what you intended to use them for. Let me know and I'll add them to the list.

* 6436K61 Two-piece Clamp-on Shaft Collar Type 303 Ss, 5/16" Bore, 11/16" Od, 5/16" Width
* 9845T103 Aluminum Hi-misalignment Spider Coupling Hub 5/16" Bore, 3/4" Outside Diameter
* 9845T13 Blue Shore 85a Spider For 3/4" Od Aluminum Hi-misalignment Spider Coupling Hub


Dustin Mustangs

uʍop ǝpıs dn
Location
Holland, MI
Also just a general request for those wishing to contribute...

Please don't post up part numbers you know are already on the list unless you are commenting about how well they do or do not work/fit. Also, when contributing pn's please make sure it's obvious to me (someone w/o a sj) what these parts are for. No need to write a novel, just a couple word description of how it relates to a ski should be enough. This will just make it easier for me to keep this thread updated and more importantly useful.

Thanks


<this is also now added to the original post>


2lick

Brap!!!
Location
Limerick, PA
Ok, the manifold o-rings are gone, sorry about that. Please post up the correct numbers if you figure them out.

I added your other new pn's with the exception of these three because I couldn't figure out what you intended to use them for. Let me know and I'll add them to the list.

* 6436K61 Two-piece Clamp-on Shaft Collar Type 303 Ss, 5/16" Bore, 11/16" Od, 5/16" Width
* 9845T103 Aluminum Hi-misalignment Spider Coupling Hub 5/16" Bore, 3/4" Outside Diameter
* 9845T13 Blue Shore 85a Spider For 3/4" Od Aluminum Hi-misalignment Spider Coupling Hub

Sorry just busy here and thought I'd post a quick picture...

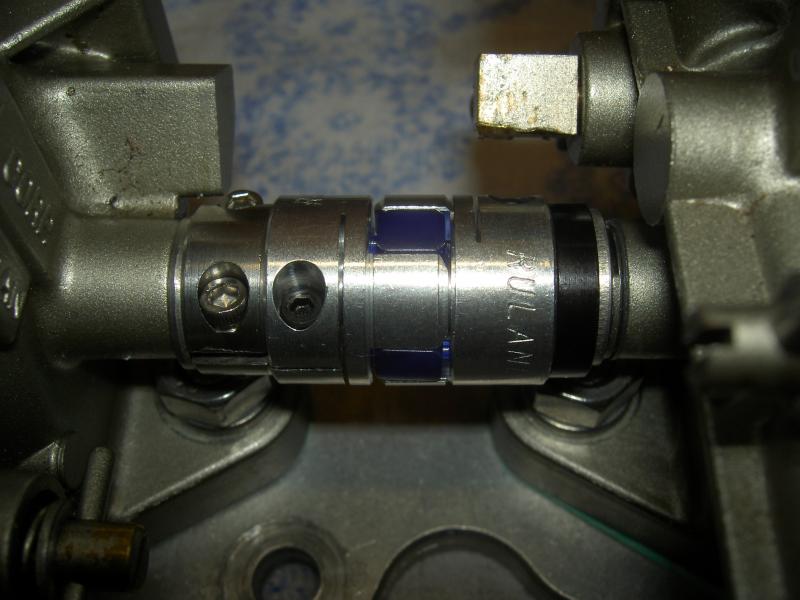

Its the setup for a nice carb coupler....

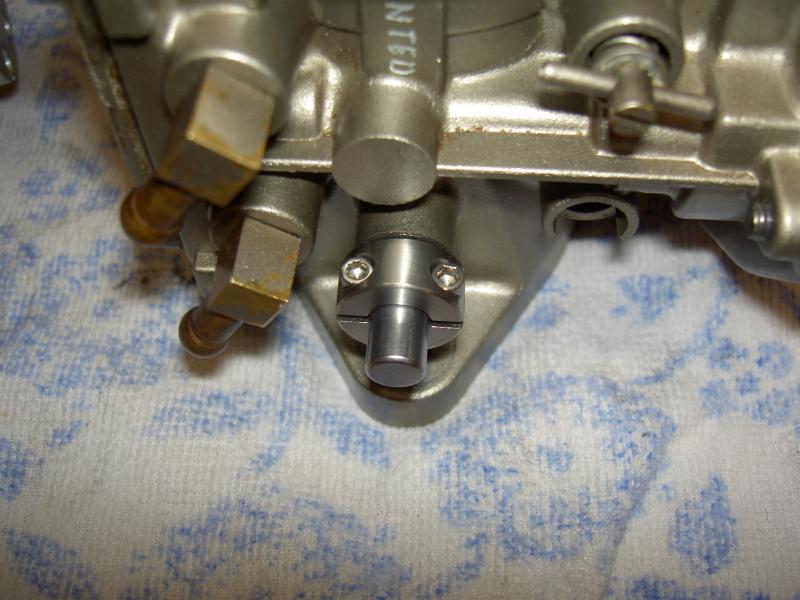

And those are clamps for on carb shafts like TBM sells for way too much....

Like I just mounted in the picture....


Attachments

  • PICT3643.jpg
    62.3 KB · Views: 802
  • PICT3645.jpg
    53.1 KB · Views: 780

2lick

Brap!!!
Location
Limerick, PA
Unfortunately also this part number is wrong 90278A321

It is too short to go thought the steering balls... Looks like the shoulder needs to be 8mm and then what ever thread length you need....

Once i figure it out ill post that too....


Dustin Mustangs

uʍop ǝpıs dn
Location
Holland, MI
Speaking of which, I noticed you had the 2988K311 ball joint listed in your post. Is that any different than the 2988K31 in the list? I looked them both up and couldn't tell them apart. And after looking again they'd both need a 8mm shoulder so that isn't it. I'm surprised that one slipped by because I was under the impression a number of people are running this hardware.

Q

QuickMick

Guest
Unfortunately also this part number is wrong 90278A321

It is too short to go thought the steering balls... Looks like the shoulder needs to be 8mm and then what ever thread length you need....

Once i figure it out ill post that too....

You are talking about the shoulder bolt?

I was wondering what that was for?

Q

QuickMick

Guest
That screw is intended for my ebox per another users recommendation....

Comparison it to the stock screws... it is larger but if you have a used some what worn out ebox cover these should do the trick....

whats the part # for the ebox screws?


Mark44

Katie's Boss
Location
100% one place
i

Speaking of which, I noticed you had the 2988K311 ball joint listed in your post. Is that any different than the 2988K31 in the list? I looked them both up and couldn't tell them apart. And after looking again they'd both need a 8mm shoulder so that isn't it. I'm surprised that one slipped by because I was under the impression a number of people are running this hardware.


FYI
That is a Ball Rod End not a ball joint.

This thread scares me.............

Mark44

"High Temp Silicone Hose, 3.5" ID, per foot (for Riva type 9): 5296K48", should be 5296K84. It is also used on the Riva Stage II (stamped aluminum wetpipe) that came out after the red cast pipes, but right before the drypipes.


Woody

Need to save my money!!
Location
Long Island
i'm using this for my cats trim...if you think of the raider trim ring, i'm gonna trim off the top, then tap into it again, installing the threaded end into the trim ring.

i am going to take my terry cable with the attachment they give to you to (for the non-barreled end) and have it welded into the female part of this piece. If the cable breaks, i can just unscrew the allen screw thats in the piece that terry cable gave me and attach a new cable into the existing piece.

http://www.mcmaster.com/param/asp/P...0634116961&ScreenWidth=1280&McMMainWidth=1075



Dustin Mustangs

uʍop ǝpıs dn
Location
Holland, MI
I finally updated the list again with the latest additions and corrections. PLEASE, if you find an incorrect part number in the main list post up and say so! I promise you won't hurt my feelings...


2lick

Brap!!!
Location
Limerick, PA
are we sure the b-pipe coupler part number is correct... that is only rated at 10psi... the old part number was a piece at 41 psi... i went with 5591K86
