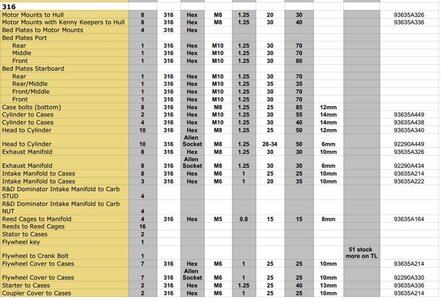

Super Jet bolt spread sheet

If the Intake Grate Bolts are M6 - 1.0 , would that be the Pump Shoe Bolt Size given that they are shorter ?

What would the 2 Rear Grate Bolts be M6-1.25 ?


Sent from my iPhone using Tapatalk


DAG

Yes, my balls tickled from that landing
Location
Charlotte, NC

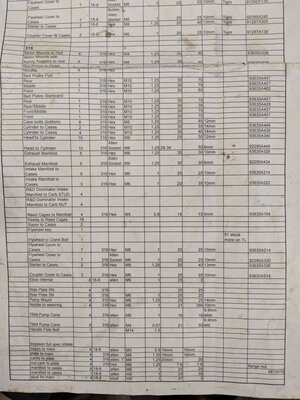

I printed it years ago.


Attachments

  • IMG_20180617_113735.jpg
    189.9 KB · Views: 175

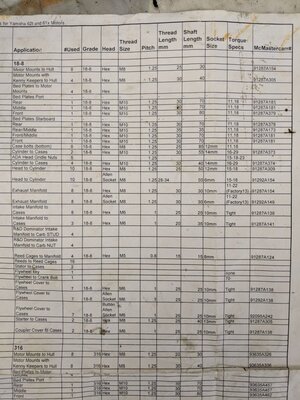

  • IMG_20180617_113729.jpg
    193.1 KB · Views: 156
I printed it years ago.

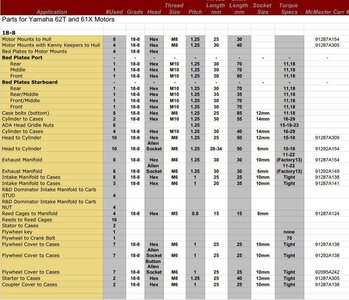

Building my second motor in two weeks. This manual and the live document that I can’t find right now have the bed plate bolts in the wrong spots. Port has four bolts. The short is mid/rear and the long bolt is rear. Starboard side has three bolts, all 70mm.

That's what I was looking for, but it's also wrong. It's just bolt placement, which is easy to figure out, but a pain in the ass when you put the long bolt in where it says and after you're done with all the bolts, there's one sticking out the other side.
