Super Jet fuel line routing

[joele21]

My ski is close to being done, just need to run the fuel lines. does anyone have a diagram on running the lines?



[Kohldanielzimmer]

What carb set up? Single? Duals? With or without the fuel selector ?



[joele21]

sorry i should have specified! but duel 44s with fuel selector.



[Kohldanielzimmer]

Is one of the two carbs a slave (no separate fuel pump)?



[joele21]

Yeah correct



[schicks]

dual pulse lines on pump bodys. Fuel in - is on the bottom, fuel return is on top

get er done and lets go ride pigeon lake!!!



[joele21]

That's what I need to know thanks! I'm trying to ride Saturday if all goes as planned



[joele21]

What about the reserve line though?



[dmpus]

Get rid of that reserve creating problems only thingy



[schicks]

i removed the fuel selector, but i think you would hook up reserve the same as the on.



[N3vrSat1sfied]

i removed the fuel selector, but i think you would hook up reserve the same as the on.

with the reserve, the line comes from tank to selector.
on line comes from tank to selector
selector feed goes to carbs with a t



[N3vrSat1sfied]

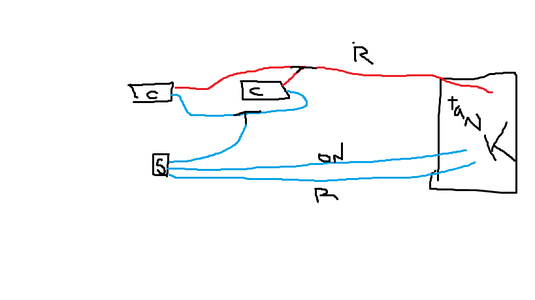

Sorry about quality. C=Carbs S=Selector R=Reserve R in red=Return



[schicks]

that makes more sense. thanks
