Freestyle Artic Cat Tigershark integrated start/stop/bilge control - anyone tried this?

[BrightE's]

Light came from Oznium.com, it is this one, http://www.oznium.com/side-view-led-bolt .

Switch came from ebay, http://www.ebay.com/itm/190668712309?ssPageName=STRK:MEWAX:IT&_trksid=p3984.m1423.l2649 (I ended up taking off the rubber button cover and encasing the whole button segment in a tube that I epoxied to the back side of the sealed blue bilge button surround. I can take pictures later if you're interested in the construction.

Here was the electric scheme.



[txsuperjetfreak96]

Oh awesome thx



[hondamxracer]

Light came from Oznium.com, it is this one, http://www.oznium.com/side-view-led-bolt .

Switch came from ebay, http://www.ebay.com/itm/190668712309?ssPageName=STRK:MEWAX:IT&_trksid=p3984.m1423.l2649 (I ended up taking off the rubber button cover and encasing the whole button segment in a tube that I epoxied to the back side of the sealed blue bilge button surround. I can take pictures later if you're interested in the construction.

Here was the electric scheme.

Post up some pictures. I am interested in what the inside looks like.

How tough was this to integrate back into the yamaha wire harness?



[BrightE's]

Post up some pictures. I am interested in what the inside looks like.

How tough was this to integrate back into the yamaha wire harness?

Whoops, sorry I let this slip under the radar. I'll take some pictures of the wiring and switch inside after work. And yes, it sucked running the extra wire down through the harness, the Polaris harness. I put a little machining oil on the wire before running it through, it helped a ton.



[kevbo]

There is a separate solid state switch that is activated by the momentary button on tigersharks.



[NewName]

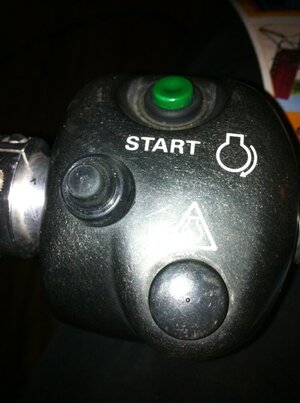

This is the Switch in original Yamaha



[BrightE's]

View attachment 214251

This is the Switch in original Yamaha

Hey that's pretty clever too. Is there any extra room in there to install an LED to know when its on/off?



[NewName]

Yes, i installed One, but have no pictures. I installed a Dual LED with Green and red.



[BrightE's]

HondaMXRacer, here are the pictures from inside the switch. You can see it is pretty congested in there.

Here is the backside of the LED housing (the aluminum nut and post)

The backside of the button epoxied in through the transparent tube.

Closer up on that.



[txsuperjetfreak96]

Coolest mod I've seen in awhile definitely needs to b stickied



[Midlake Crisis]

Thanks for the inspiration and diagram! Got mine finished this afternoon



[BrightE's]

Hey that's pretty good! That led looks like it found a new home in that thing. Perfect fit

Sent from my LG-G2 using Tapatalk
