funny project : Yamaha Flat deck......

[loictahiti]

hello, I try to explain and post some pics of my new project , so be cool with my bad language ....

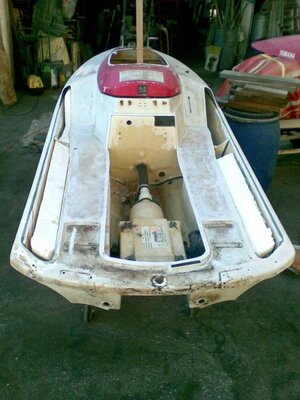

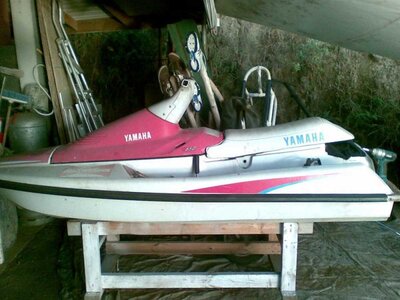

in first I take old WXR run , if you remember this model, he was not very funny , and he has a bad balance with 2 person on board, cool , I'm looking for a small hull ....

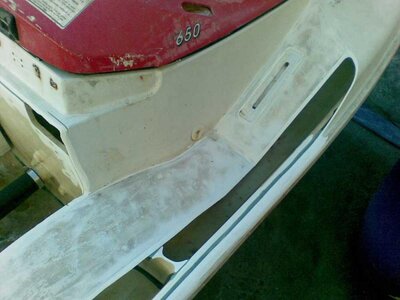

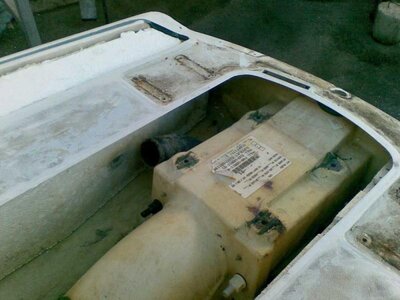

I found a hull and start to cut ......to cut everything :smile:



[WFO Speedracer]

Looks kind of familiar ,now lets see if they laugh you out of here like they did me.



[loictahiti]

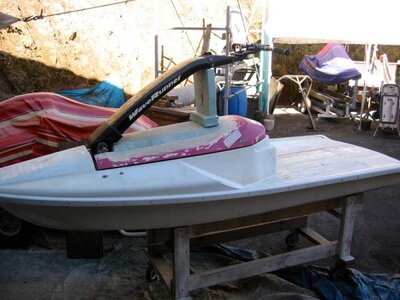

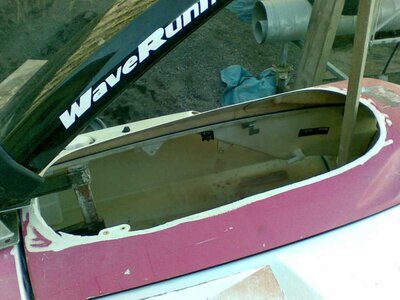

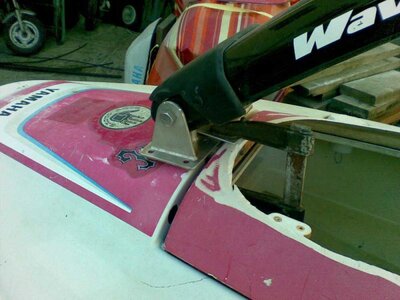

after that I cut the hood, and try to find the best place for the new steering system.....



[loictahiti]

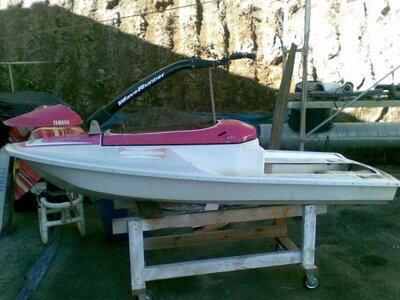

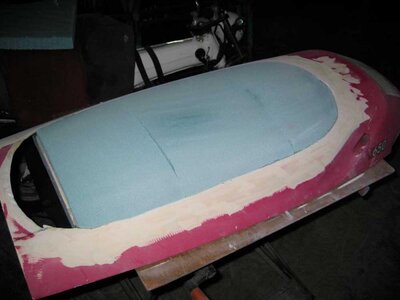

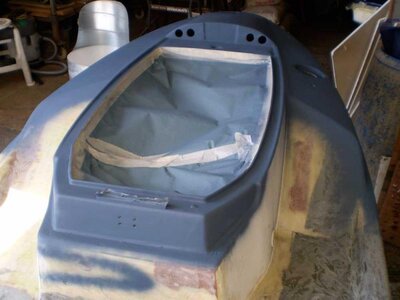

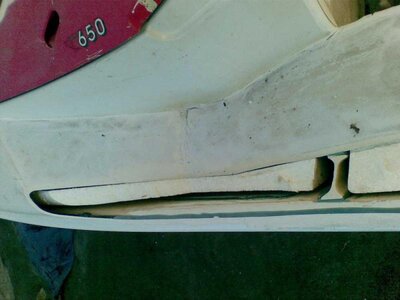

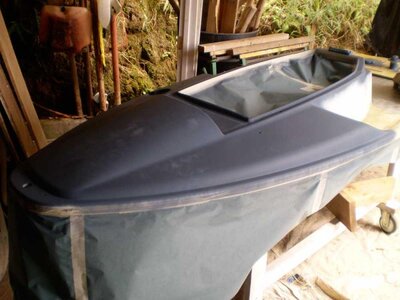

in same time , I start to foam the deck and the new hood



[Yohns Kustom Fabrikation]

That is a really cool idea. What engine will you run ?



[loictahiti]

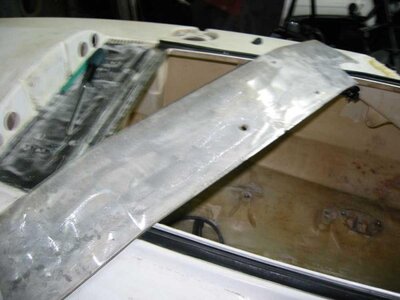

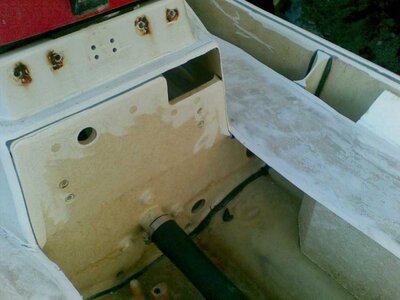

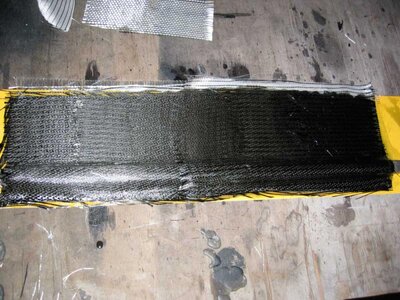

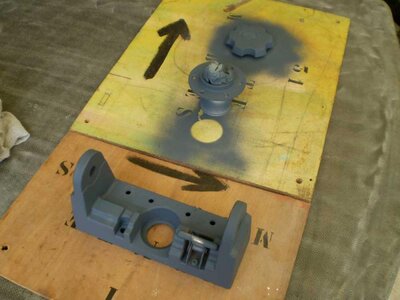

after some test , the handepole is too on the front, I've to make a new space . I 've made a plate in Carbon , and use a aluminium plate inside , to do something strong



[loictahiti]

That is a really cool idea. What engine will you run ?

6M6 / 61 x with adm 750/800 weld on, with + 6 stroker , and double 46 , Protec exhaust , lightened flywheel , +2 timing advance , Protec CDI, ....



[loictahiti]

all the hole are epoxied + rowing , the new handepole place, is very good, and it seems to be enough strong for futur hard ridind ahahaha



[loictahiti]

oups , I forget the battery place, I need to make a new one....inside

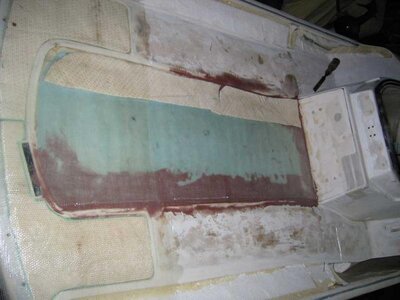

in same time , all the deck got carbon and epoxy resin, + primary painting on top and white coat on the hull



[loictahiti]

the pics.....



[Motorheads5]

Excellent job. I like it that should be alot of fun.



[orangefinger]

This fun, Great Job !!

Did you use foam blocks, what foam is this ..??



[loictahiti]

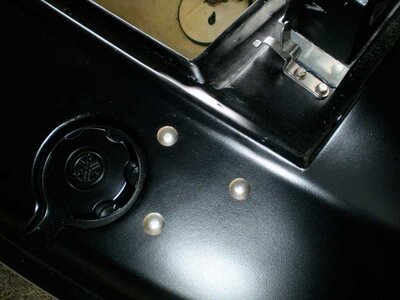

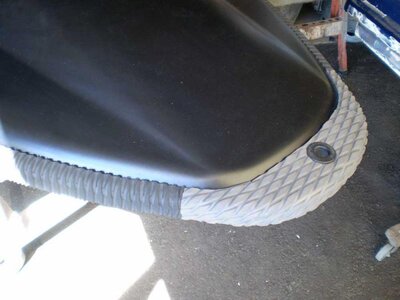

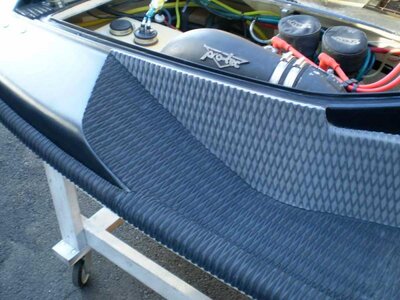

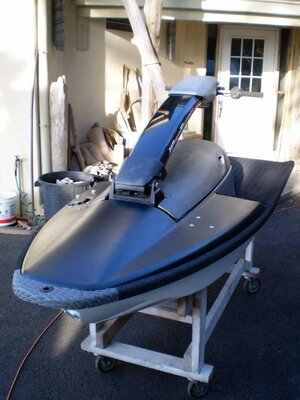

and black painting on top with flat vernish and 2 carbon layer + flat vernish too , on hood



[Chris03HD]

very creative!

I think it's pretty cool and you seem pretty anal about the quality.



[loictahiti]

I use 2 kind of foam, in block ,I found it on road side hihihi , I don't know the name, but it's POLYURETHAN and 2 parts liquid foam .

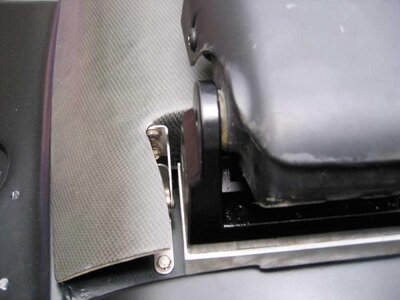

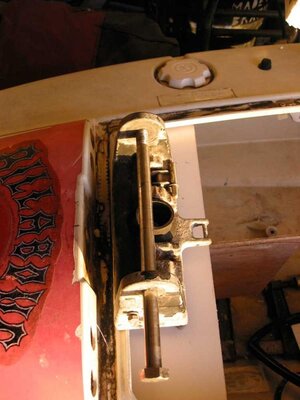

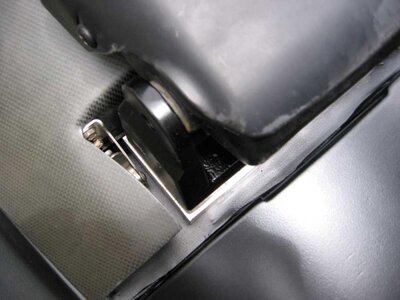

I use the SJ SN hood hook , hard to fit in, but it's works fine and need to change the steering cable (too short) and use a WR 3 cable , a little bit long, but I need to move the end of cable on steering plate

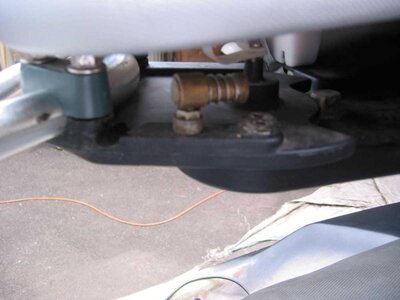

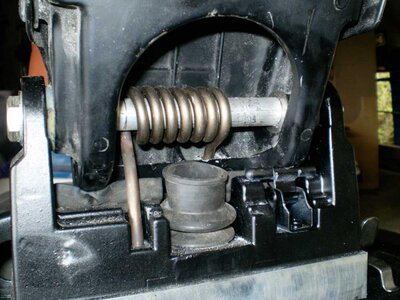

I made a big spacer between hull and handepole bracket, and modify the stock spring and put aluminium pipe



[JetManiac]

cool build, very creative



[loictahiti]

thanks, and what does it means "pretty anal" :question::question:

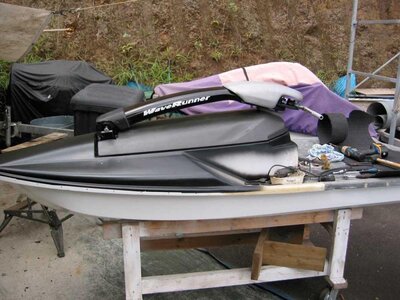

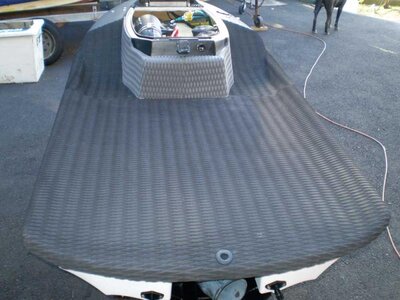

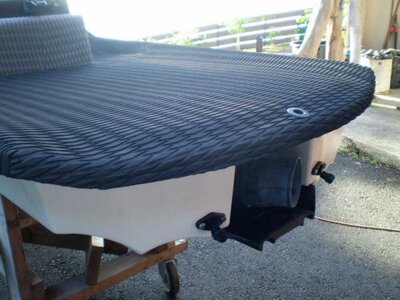

now it seems to be in good way hahahaha



[jkirkland]

Anal- kind of like overdoing things, perfection is your goal.... Pretty cool build--Jason--



[loictahiti]

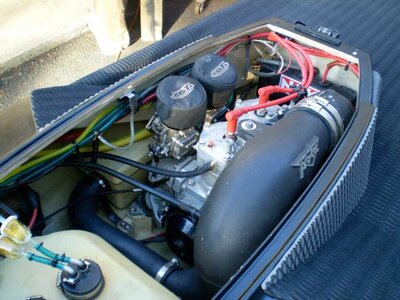

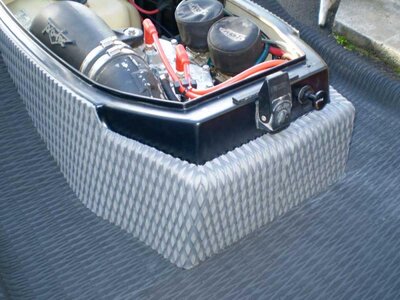

it's time to glued and see inside .....the 17 years old engine :Banane09:



[2ride]

That's some great stuff, can't wait to see this thing in action....
