JM Electrical Parts -Ebox,Starter,Bendix,Flywheel,Stator,Start/Stop,Solenoid,CDI, MSD

A

Azzrattler

Location
Sacramento California
JetManiac said:

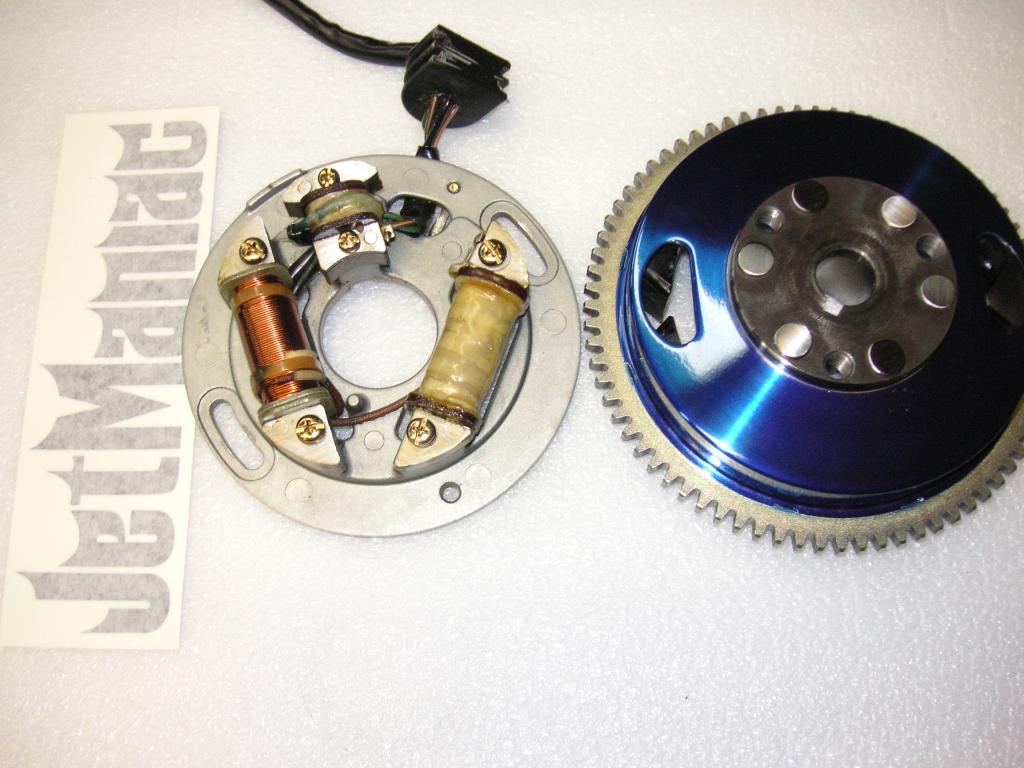

OEM Stators and Lightened Flywheels

61x

61x OEM JM recon. stator 194.75
(Clean used, coils tested, fixed as needed, 90 day exchange warranty)

61x OEM lightened flywheel 159.
(Approx. 1/2 lb. of rotating mass removed)


62t

62t OEM lightened flywheel 195.
(Approx. 1/2 lb. of rotating mass removed)

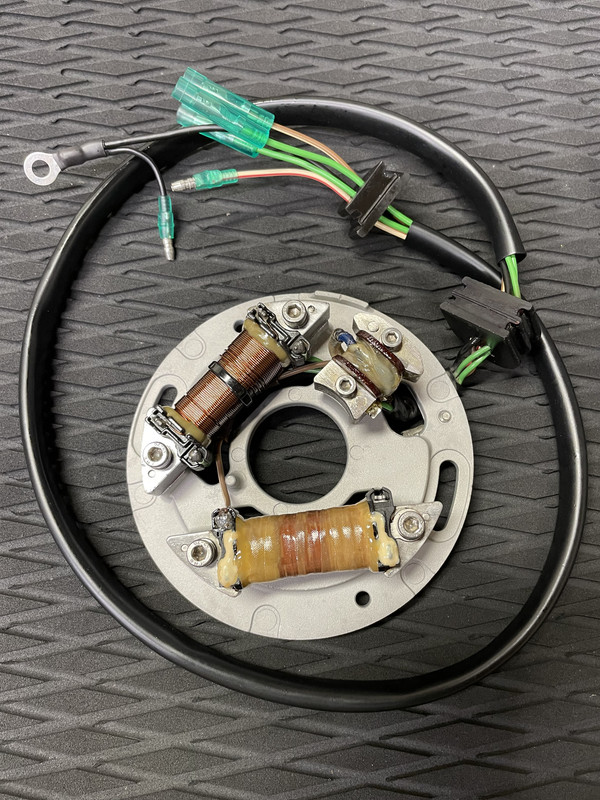

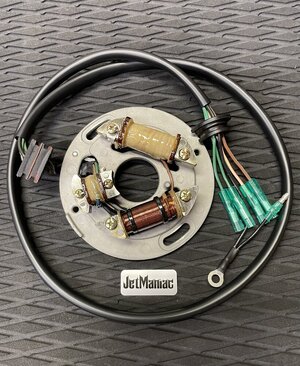

62t OEM JM refurb stator 298.
(Clean oem used, tested, fixed as needed, 90 day exchange warranty)

New 62t OEM stator $758. sale 624.50

New 62t OEM stator replacement charge coil $252.99 sale 199.80

New 62t a/m stator $118.



Jetinetics 62t billet lightweight flywheel $795. sale *contact for current sale price

760/64x OEM stator/flywheel cover/harness assembly 219.
(4 months exchange warranty)




PUSH billet Yamaha flywheel lock tool 49.95
Cold Fusion billet Yamaha flywheel lock tool 49.95
Flywheel puller tool 29.95


New Flywheel cover gasket 12.49

JM allen head flywheel cover stainless bling bolt/washer kit $11.95

Woodruff key for flywheel OEM Yamaha 10.49

Flywheel bolt OEM Yamaha SJ -new $33.99 sale 29.89

Flywheel bolt OEM Yamaha -clean, used 9.90

Blank new stator grommet to cases/flycover 11.95
(for Zeeltronic or MSD TL install)



Threebond 1211 High Temp, Hi quality silicone sealer 23.95
(great for both flywheel cover gasket and for starter nose as well as between crankcase halves.)



Under the flywheel cover hardware kit 39.
(OEM Yamaha flywheel bolt, 2 stator bolts, flywheel woodruff key, bendix front cover spring and 2 washers- all OEM clean, used, inspected parts)

Maniac SS Allen flywheel cover bolt kit $13. sale 10.90
(7 SS bolts with SS washers)

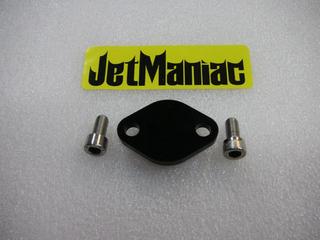

Yamaha 650/701/760 Oil pump blockoff kit 13.

Yamaha 800/1100/1200 Oil pump blockoff kit 13.

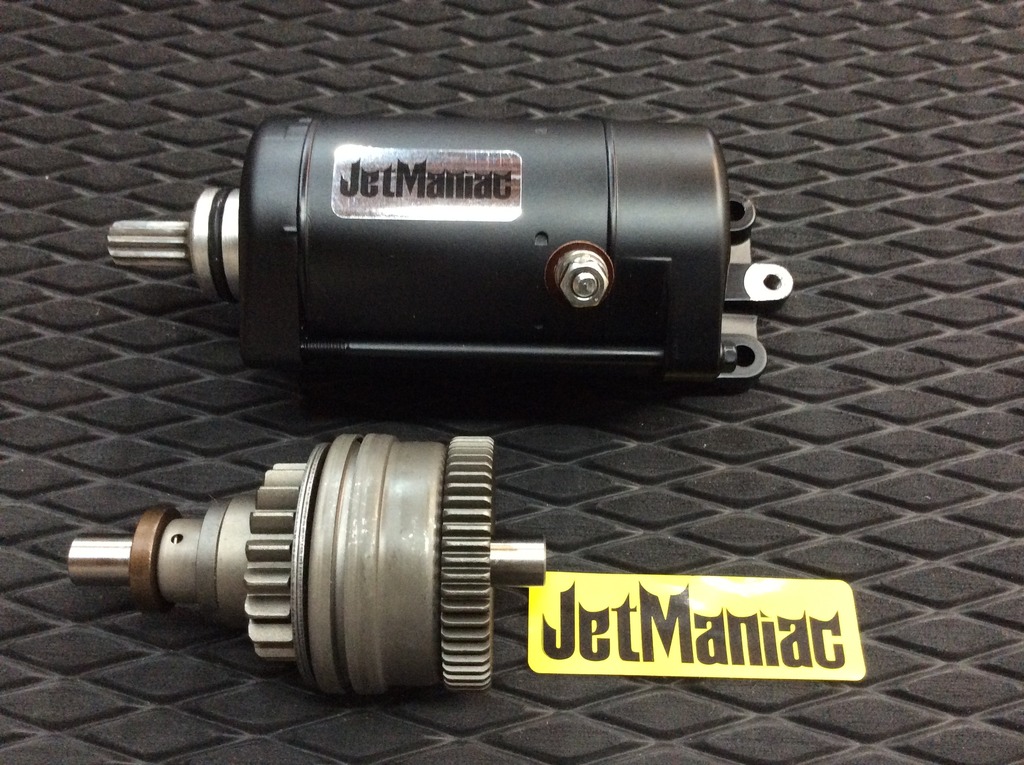

Starters

index.php


Aftermarket starters don't last and aren't as powerful as OEM Mitsuba starters. But new OEM starters are really expensive from Yamaha so JetManiac is rebuilding clean oem starters to fill the gap between new oem and a/m starters. They are totally disassembled, cleaned and rebuilt as necessary and finished with multiple coats of black satin epoxy paint.

Yamaha 650/701/760 Starters

New OEM Yamaha starter $561. sale 448.

New ProTorque GOLD 701/760 starter $239. sale 178.89
(1 year warranty, we have sold hundreds of these with excellent reliability and 2 warranty claims)

OEM JM rebuilt starter for Yamaha 701 289.80 (backorder wait)
*Tested to work and includes a 6 month exchange warranty.
(water intrusion thru nose is not covered.)
*Add extended warranty for 1 year 20.

JM OEM Yamaha 701 starter 159.80
(clean freshwater starter, cleaned, inspected, polished nose, new nose Oring, lubed and tested, 60 day exchange warranty)

New SBT Hi-Torque Starter 149.90
(1 year warranty)
Fits Yamaha 650, 701, and 760cc motors


*add SS allen starter bolt install kit 5.
(stainless allen bolts with locking and flat washers)


Yamaha 800 (XS1200), 1100/1200/1200PV, 1300PV Starters

New ProTorque GOLD 800/1100/1200 starter $239. sale 178.89
(1 year warranty)

OEM JM rebuilt starter for Yamaha 800 PV, 1100/1200, 1200 PV 259.
*Tested to work and includes a 6 month exchange warranty.

JM OEM Yamaha 800 PV, 1100/1200, 1200 PV starter 129.
(clean freshwater starter, cleaned, inspected, lubed and tested, 60 day exchange warranty)


Kawasaki Starters

Kawasaki starters fit 650, 750, 800, 900, 1100, and also Polaris Octane

OEM JM rebuilt starter for Kawasaki 650/750/800/900/1100 209. (limited availability)
*includes a 6 month exchange warranty.

New ProTorque GOLD Kawasaki 650/750/800/900/1100 starter $239. sale 178.89
(1 year warranty, we have had great reliability with these)

JM OEM Kawasaki 650/750/800 starter $99.
(clean freshwater starter, cleaned, inspected, lubed and tested, 60 day exchange warranty)

New SBT Hi-Torque Kawi Starter 99.95
(1 year warranty)


Starter parts:
Replacement Starter nose O-ring OEM 7.95

Replacement Starter nose O-ring a/m 2.39

Starter OEM rubber seals 8.90/ea
(seal between center section and front and rear sections- 2 needed)


Bendix (aka: starter drive, idle gear comp.)



Again, aftermarket bendix just aren't up to OEM quality, but new oem are really expensive. Failures of OEM bendix are usually due to water intrusion or the inner metal weight plate ears breaking off allowing the weights to move around, and then break their locating spring allowing bendix to stick open.

JetManiac OEM bendix are inspected for inner weight plate having all 3 ears intact and replaced if needed, gear teeth and end surface condition, bushing ends are inspected and polished, finally they are cycled repeatedly to check front reverse drag and action, and lubricated with special Corrosion X HD lubricant protectant. Many are rejected for various other issues. Only nice clean ones are used.
(bgrade cosmetic available for less)

**If you have had bendix issues or are building a new motor, also make sure to check the soft bushings in the crankcase and inside the flywheel cover. Bendix should go in relatively tight and not rock much at all from side to side. The case side is especially prone to wear.

JM OEM bendix $129.80
*Tested/inspected/cleaned/lubricated/4 month exchange warranty
(water intrusion is not covered.)

New OEM bendix $522.99 sale 349.


Bendix installation parts:
Bendix bushing OEM- for crankcase or flywheel cover 15.95
Bendix bushing a/m- for crankcase or flywheel cover 5.95
Bendix front cover spring 11.95
Bendix front washer-smaller, thick for each side of front cover bendix spring- OEM 2.54/ea.
Bendix rear washer-larger, thin for bendix to crankcase -OEM 6.49

Bendix repair parts:
Yamaha OEM bendix weight spacer plate 18.99
(Replaces frequently broken internal plate that spaces the 3 weights. Broken ears are common and one of the causes of the dreaded 'bendix grenade.')

OEM bendix internal spring to hold weights 17.99


Billet Flywheel Covers
(all of these billet covers use oring instead of paper gasket)

View attachment 296546
JetManiac anodized billet Yamaha flywheel cover 179.95 -Black only in stock
*Reusable Oring included.
*These flywheel covers fit Yamaha 650, 701,and 760 cases with OEM 650 6m6, 701 61x, or 701 62t electrics or MSD total loss setups.

JM SS allen head flywheel cover 7 bling bolts/washers kit $11.95

Dowel pins for cases to flycover 3.59

DASA billet flywheel cover 179.95
Click to expand...
Do you have any billet flywheel covers for a 750sx
