Ski PUMP PARTS-Driveshafts,MAG/OEM pump,Props,Wear Rings, Pump Shoe, Intake Grate, parts

OutRAGEous

OutRAGEous

Location
BC
Looking for a Solas 12vane stator for a Yamaha 144mm pump, and a Hooker impeller. Too new to send you a PM...what email address works?

M

Mike Hill

Location
Minnesota
JetManiac said:
JetManiac's Pump Shop

Driveshafts and Midshafts (Coupler/Intermediate shaft)
'90-'07 SJ length nontapered HD driveshaft 189.

'08-'14 SJ length nontapered HD driveshaft 189.

'93-'96 Waveblaster WB1 driveshaft 189.

Setback driveshafts for Skat Trak, H2O, and Maxx MAG pumps

Custom length driveshafts available

(B stock shafts are sometimes available for 119.-139.)


Midshaft/coupler shaft SJ new a/m 92.

Cold Fusion SJ/B1 midshaft 138.

OEM SJ midshaft 230. Sale 195.


MAG Pumps

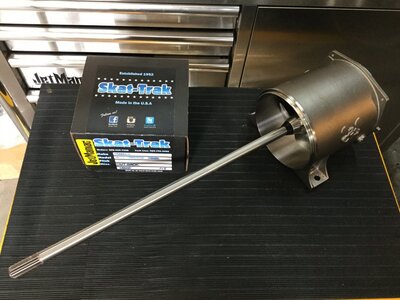

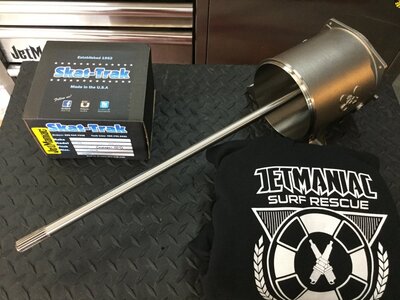

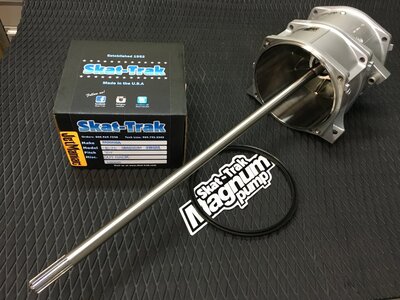

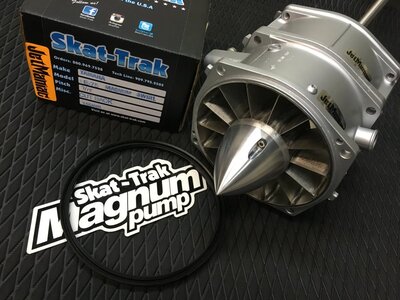

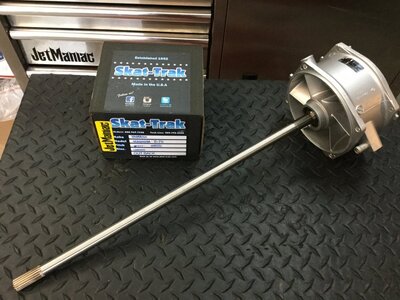

Skat Trak Setback or Nonsetback 144, 148, 155, 160mm MAG pumps
http://www.x-h2o.com/index.php?thre...back-driveshaft-and-c-75-impeller-1580.82606/


Solas MAG 144 and 148mm MAG pumps
http://www.x-h2o.com/index.php?threads/solas-mag-pump-144mm-12vane-ss-for-yamaha-475.108950/

H20 designs Torrent 148mm setback and nonsetback pumps 995.

Available pump only or in kit with driveshaft, Skat 148 impellers also available

Pump and Midshaft Rebuild Kits

Pump Build/Rebuild kit (2 bearings/2 seals/o-ring) 39.

OEM Pump Build/Rebuild kit (2 bearings/2 seals/o-ring) 89.90 discount to 76.

Koyo Jap Oem brand pump rebuild kit (2 bearings/2 seals) 89.90 sale 59.90

Midshaft Build/Rebuild kit (Bearing/3 seals/2 orings/clips) 39.

Setback Pump Build/Rebuild kit (2 bearings/2 seals/o-ring) 59.


Pump Parts

Pump stator vane section 144mm for SJ/Blaster (used, clean) 75.
Pump stator vane section 144mm for SJ/Blaster (used, average) 50.

Pump Seal (wear ring to pump shoe) 144mm new a/m 21.

Pump Seal (wear ring to pump shoe) 144mm new OEM 29.

Pump Seal (wear ring to pump shoe) 155mm new a/m 39.90

Long 144 pump bolts -New OEM 6.95/ea.

144 Pump to hull bolts -New OEM 6.95/ea.

pump bolt to hull tray brass OEM threaded insert 4.50

Pump SS shim kit 19.


Driveshaft spline tool for impeller removal/installation 16.

Midshaft spline tool (for midshaft coupler removal/installation) 19.

Skat Trak or Hooker hex impeller tool 21.90

Solas impeller tool 15.

Skat Trak or Hooker impeller nose boots 8. (specify tapered or nontapered shaft)

Impeller washers (2mm) OEM 8.
Impeller spacer washer SS a/m (0.8 or 1.5mm) 6./ea.
Impeller spacer kit (all 3 sizes) 19.50

Brass Water Fittings for dual cooling on exhaust manifold, pump, and head

3/8" hose fittings 5.
1/2" hose fittings 6.

Impellers

Impros HOOKER Freeride Impellers

The Impros Hooker 144mm impeller for the Yamaha is a 3 blade large hub diameter, radial edge design stainless steel impeller designed and intended for bottom end power and "Hook up" (hence the name Hooker) for freestyle and freeriders on a SJ or Blaster that utilizes the 144mm Yamaha pump.
Designed around maximizing pump efficiency and bottom end, this is a new radial edge design, large hub (75mm), and is set back 7mm.

Hooker fits stock 144mm Yamaha pump, Skat Trak Magnum pumps (with shim), and TBM/other brand Super Pump Cone.

Impeller includes nose seal and hooker impeller tool.

New Impros HOOKER Freeride Impeller 279. special 265.
9/15, 10/16, or 11/17

Skat Trak MAG Pump Impellers


Skat Trak C75 Big Hub 144mm 14/19, 13/18 Impeller 279.
Skat Trak D75 Big Hub 148mm Impellers 279.
Skat Trak E75 Big Hub 155mm Impellers 279.


Freestyle pump cones

Wet Wolf stubby pump cone (for OEM yamaha pumps 144 and 155mm) 55.

XScream lightweight composite cones for MAG pumps 55.
(3 lengths available)

Impros freestyle stubby cone for Solas MAG pump 55.

H2O Torrent Mag pump stubby cone 55.


Wear Rings
(More information about wear rings in post 3 below.)


SBT 144mm wear ring with replaceable delrin plastic liner 139.

View attachment 291741
OEM Yamaha new 144mm wear ring for SJ/Blaster 274. Sale 239.

Replacement 144mm delrin liner for SBT or WSM 35.

OEM 144mm impeller housing/wear ring for SJ/Blaster (used, freshwater, clean) 89. (when available)

Solas all Stainless Steel 144mm wear ring 299.

144mm Pump wear ring to pump shoe seal 21.

155mm Pump wear ring to pump shoe seal 39.90

Replacement 155mm delrin liner for SBT or WSM 35.

155mm B2 wear ring with replaceable plastic liner 149.90

Taper-Bored Reduction Nozzles

These metal reduction nozzles have been newly taper-bored to 85mm by #zero. High quality machining work, almost too nice to install, pics do not show how nice they are. The nozzles have also been refinished and are ready to install. They are designed to increase water flow through the pump to help with low end freestyle performance.

144mm size for Superjets or Blaster 1's

Standard no trim style Bored Reduction Nozzle 99.

62t Bored Reduction Nozzle for use with Trim system 169.
(for CATS, Xmetal, Thrust, etc.- also have 5 deg up nozzles)
(without stock siphon bilge fitting)

155mm Bored Reduction trim nozzle 179.

Add a quick turn modified steering nozzle for 49. add'l no trim
Add a quick turn modified steering nozzle for 55. add'l trim

Trim systems and parts:
Thrust and Xmetal
http://www.x-h2o.com/index.php?threads/trim-systems-from-jetmaniac-thrust-and-xmetal.141581/


Pump Shoes


OEM Yamaha Pump Shoes

Superjet 1990-2013 OEM 144mm pump shoe reg. 110. sell 94.

Waveblaster 1 1993-1996 OEM 144mm pump shoe reg. 150. sell 129.50

Waveblaster 2 1996-1997 OEM 155mm pump shoe reg. 129. sell 109.50



Aluminum Pump shoes

Blowsion Aluminum 144-148mm pump shoe 96.

Jet Dynamics Aluminum 144-148mm pump shoe 117.

144-148mm Pump wear ring to pump shoe seal 21.

155mm
Yamaha 155mm Jet Dynamics aluminum pump shoe 117.

RRP rickter aluminum 155mm pump shoe 149.

155mm Pump wear ring to pump shoe seal 39.90

Yamaha 160mm Jet Dynamics aluminum pump shoe 117.
Click to expand...
Chris,
I am intrested in a new mag/impeller for a stock 2000 R/N 701 can you call me to discuss? 312-927-4367 Mike

9

907rider

Location
alaska
Interested in getting a different set up for my 06 superjet,I don't know much about the bigger pumps,if u could Recommend a set up for flat water riding,i d like to get some prices from you.thank you
