Custom/Hybrid Havoc build

[motoman3000]

I just looked again at your pics harbor , and yes , it was installed backwards. Blame the dogfish head


Sent from my iPhone using Tapatalk



[Harbor]

No worries, thank you



[motoman3000]

5 -pack of grinding wheels later she’s in.

There’s some gaps on the wings behind the pump shoe bolts. I plan I getting some black permatex silicone and flushing everything up.

Sent from my iPhone using Tapatalk



[Sanoman]

Looks like you're almost ready to flip her over!



[motoman3000]

Looks like you're almost ready to flip her over!

I did and she liked it


Sent from my iPhone using Tapatalk



[motoman3000]

Laying ufo mounts tonite for the limited slip tank and jetmaniac waterbox

I have two different weights of carbon. 5oz and 9oz in case I did tray work.

I’m thinking a couple layers of 5oz with some g flex and cabosile

Sent from my iPhone using Tapatalk



[motoman3000]

@flyinryan had all the mounts set for the pfp and waterbox so I’ll prob use a couple.

Mounted 4 ufo , I added black dye to the gflex and also to the epoxy.

Stuffed the ufo threads with clay prior to install. Once all is cured I’ll use my angle die grinder to sand away down to the threaded nut and run a tap thru to get clay out

Sent from my iPhone using Tapatalk



[motoman3000]

$12 on Amazon. Cut through the carbon nice , no fray or tugging


Sent from my iPhone using Tapatalk



[JetManiac]

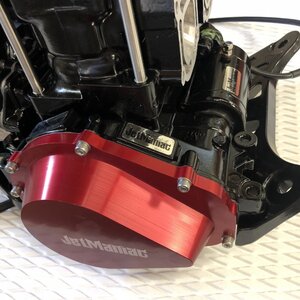

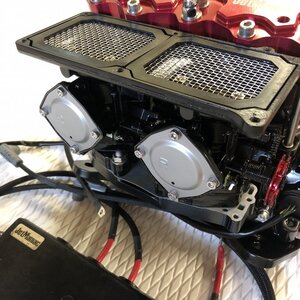

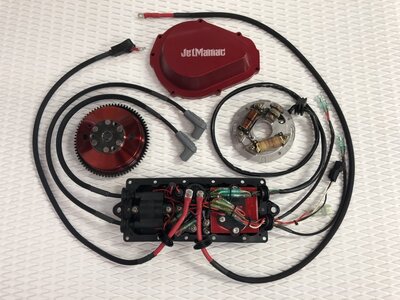

On the way! More pics coming.



[JetManiac]

Ready to Braapp!



[motoman3000]

Nicely nestled


Sent from my iPhone using Tapatalk



[motoman3000]

Turf time - last few jobs I did my template in tin foil and they came out well.

Saw someone here use blue painter tape , thought it was a good idea

Easier to get it perfect


Sent from my iPhone using Tapatalk



[motoman3000]

That’s for the 26mm underpad. Not sure but I’ll probably just do 9mm on the underside of the footholds

Sent from my iPhone using Tapatalk



[Jcary85]

Looking good! Great pics - always wondered what the hull looked like de-turfed. Im very curious to see what you do with your footholds. I honestly hate mine. Feels like just my toes are locked in and I'm constantly kicking in. Is the right side foot hold a slightly different size/shape than the left? My right foot big toe has taken an absolute beating kicking in but my left foot is fine.



[motoman3000]

No idea how I ever did turf without this sander!!

Pretty sure I’m not putting any padding on the tray under the holds. Just 9mm on the underside for tops of my feet, still working it out so plans could change


Sent from my iPhone using Tapatalk



[motoman3000]

Sent from my iPhone using Tapatalk



[Roseand]

Definitely put padding underneath your feet if you plan on doing any sort of aerials!
Also, put padding where the front of your ankle meets the foothold.



[motoman3000]

@Jcary85 if they are diff size it’s minimal


Sent from my iPhone using Tapatalk



[motoman3000]

Ended up putting 9 mil pad on tray under the footholds

Done with this bull crap , not my finest hour but it will get me on the water


Sent from my iPhone using Tapatalk



[Sanoman]

“Done with this bull crap , not my finest hour but it will get me on the water”
Havocs aren’t the easiest skis to turf man! You did great!
