Custom/Hybrid Jloria's "Ah, freakout!" build...2012 Superfreak -4.3

jloria

jloria

Location
Jacksonville, Florida
very short update since I had a very long day

not so good news:
dog almost drowned today(not kidding either) + gf roof is leaking( had to fix temporary)+ found a fuel leak from the primer bulb...hose slipped off


good news:

got ski in the water on Saturday with a few members here...ski ran well...very strong motor even just breaking it in..WOW

super stable...detailed ride report soon...but had no turf in the tray

on the ferry...on my way to huguenot to meet the guys

build #16 003.jpg

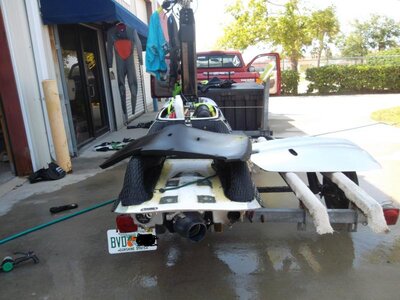

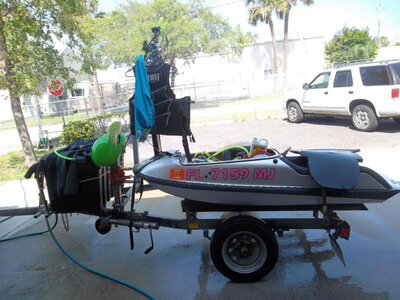

flushed ski after ride on Saturday...

build #16 006.jpgbuild #16 010.jpg

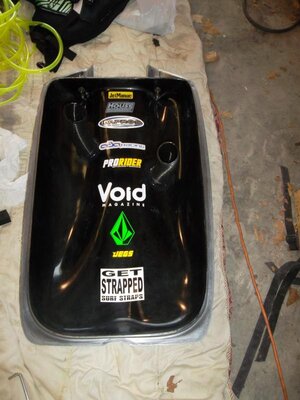

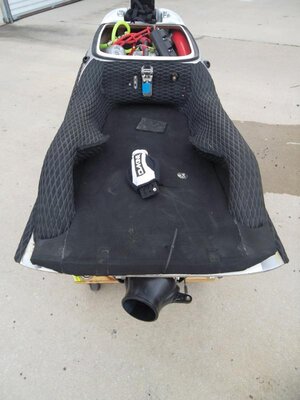

got some decals and tray turfing today then messed with a fuel leak

build #16 014.jpgbuild #16 042.jpgbuild #16 047.jpgbuild #16 017.jpgbuild #16 039.jpgbuild #16 048.jpg

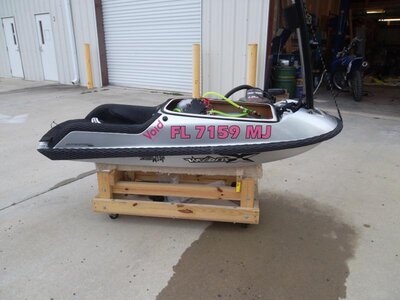

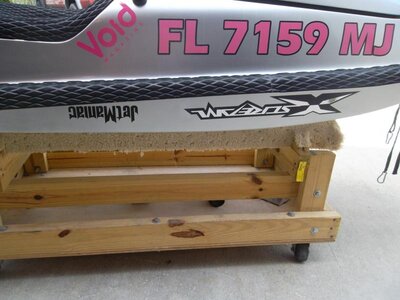

the pink numbers are interim since I will be having some graphics made...

although I dig pink...the numbers were MASSIVE 3" per state law but i didnt realize how large they were until I pulled them out of the box Friday night...the initial font was much smaller I suppose...should have paid more attention at checkout

that being said...i had to run them to ride on Saturday and they are HUGE as you can see

Last edited:
jloria

jloria

Location
Jacksonville, Florida
FUEL SIDE QUICK DISCONNNECT OPINIONS


I purchased all new quick disconnects for my fuel lines and primer lines. They are from colder with SS parts and rated for fuel. I will be replacing the o-rings with viton o-rings.
--------------I already had to pull the carbs to figure out a fuel leak issue. My primer lines were too large.

I want to use all quick disconnects for ease of use.

Here's my question:

Would it be ok to to use a quick disconnect for my pulse line?

(PLEASE NOTE: I have some couplers coming in that have higher nominal flow rate than some of the cheaper types)
I have heard that you want the pulse line as short as possible.



Any caveats to this setup for the pulse lines?

Any issues in general, with fuel rated quick disconnects with viton o-rings?


I really want a quick disconnect setup on my fuel side if possible...

Last edited:
jloria

jloria

Location
Jacksonville, Florida
X-METAL POLE PINCH BOLT SETUP WITH POLE SPRING

Pole bolts were drilled through. Then they were linked together with a white sleeve or pvc and then the spring over that. I think the spring had a blue hose over it to protect the pole area on the ski.


1. Who has the freak with the x-metal pole bolts with the pinch bolt setup?

I can't find it for the life of me...I have been looking all morning and I want to try and copy this setup if possible.


I want to try and find a place to purchase the pinch bolts to have it made...I keep looking with no luck either...

mcmaster, home part stores..ha, etc...

Last edited:
Freakie

Freakie

Location
Cape Town
Hi

I really need some turfing advice.....I saw you eventually got some assistance......Is that dude on the X.....does he have some pics which can help me (I am nowhere close to FL, so cant pay him to do the job....but if he has some great pics and advice i would do a paypal to him for that ...lemme know please.....cant believe you put your ski up for sale man !!!!


jloria said:
you are right...

I maybe going out of town this weekend, if not...i will probably add some pieces to fill up the gaps I have...

I made this template of hydroturf for the sides:

View attachment 213304View attachment 213305



its curved to match the ski but I was wondering if you guys just use a straight template and use the heat gun to make the curves?
Click to expand...
