Th3g3rm4n4t0r said:
@Quinc

Wack certain spots with a copper hammer... seen on the right of crank in pic. Sometimes when its really bad you pinch it in the vise. Sounds crazy but yes!

Ill try and break it down to the basics... Think of the crank pins and how they operate, you can have a crank webs off to one side so to the left or right and a lot of the time towards each other or away from each other. You use the dial indicator and measure run-out while you are spinning the crank on v blocks, by doing so you can see the hi and low points and can figure out if the web or webs need to be closed or opened.

If you wanted to close a web you would squeeze both of them together with what i prefer a vice, and tap it with a non maling hammer cause sometimes they get heavy AF!





If you wanted to open it i use a copper hammer to force it outward.

After all this, think of a straight edge, a long ruler. You want everything on that crank to spin in a straight line (very little run-out) !!


It sometimes takes quite awhile to get one trued up. especially triple cranks. If your really anal about it being perfect it could take awhile to get to .001 or less by going back and fourth beating the poop out of it for hours basically.

Hopefully i did ok explaining this, its how i look at it. Still learning everyday and its awesome. Its always changing, not all cranks are the same. Its literally alegebra. Problem solving!
Click to expand...



Im glad people are liking that... I guess i was "true" with facts! Hopefully you all learned something new, happy to explain it

cookn

cookn

Kamikaze
Location
where you live
Th3g3rm4n4t0r said:
@Quinc

Wack certain spots with a copper hammer... seen on the right of crank in pic. Sometimes when its really bad you pinch it in the vise. Sounds crazy but yes!

Ill try and break it down to the basics... Think of the crank pins and how they operate, you can have a crank webs off to one side so to the left or right and a lot of the time towards each other or away from each other. You use the dial indicator and measure run-out while you are spinning the crank on v blocks, by doing so you can see the hi and low points and can figure out if the web or webs need to be closed or opened.

If you wanted to close a web you would squeeze both of them together with what i prefer a vice, and tap it with a non maling hammer cause sometimes they get heavy AF!





If you wanted to open it i use a copper hammer to force it outward.

After all this, think of a straight edge, a long ruler. You want everything on that crank to spin in a straight line (very little run-out) !!


It sometimes takes quite awhile to get one trued up. especially triple cranks. If your really anal about it being perfect it could take awhile to get to .001 or less by going back and fourth beating the poop out of it for hours basically.

Hopefully i did ok explaining this, its how i look at it. Still learning everyday and its awesome. Its always changing, not all cranks are the same. Its literally alegebra. Problem solving!
Click to expand...



Did you also check your crank phase after truing it up? The phase is the measurement of the degree your rods are at, and being a two cylinder they should be 180 degrees apart which is critical and can get thrown out of wack when you beat on the webs to true it up. Once the two measurements are achieved, you usually tig up the rod ends to keep everything from moving, especially if the crank has been rebuilt.

Th3g3rm4n4t0r

Th3g3rm4n4t0r

Brawlin' n Flippin'
Location
Ajax, Ontario, Canada

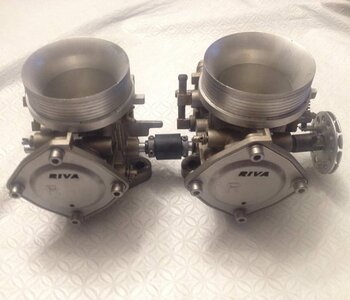

Got the carbs from @sneds today, once again thank you sneds! (i also bought my PFP from him) A++ \



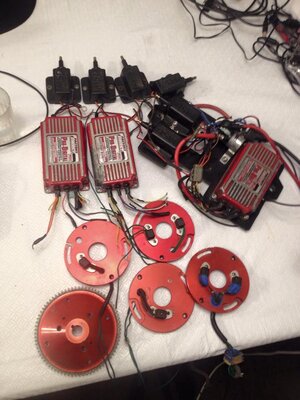

I have finally gathered all of my main components! Within the next month ill be ordering my ET967 or 1107. Hoping for the 1107!

What i still need:
Skat Trak 155mm 8/17 Impeller
Limited Slip 5.5 Gal tank
155mm CATS trim, ill make something of my own (custom trim parts)
2 Flame arrestors


Then i just need time to build! :eek:

Th3g3rm4n4t0r

Th3g3rm4n4t0r

Brawlin' n Flippin'
Location
Ajax, Ontario, Canada

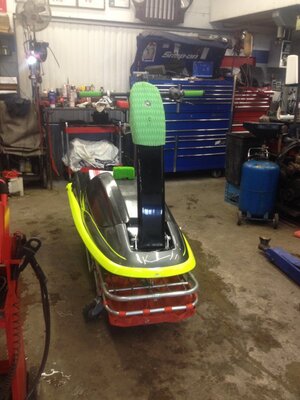

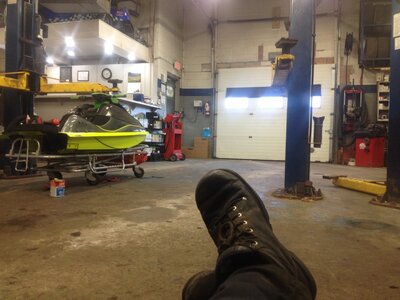

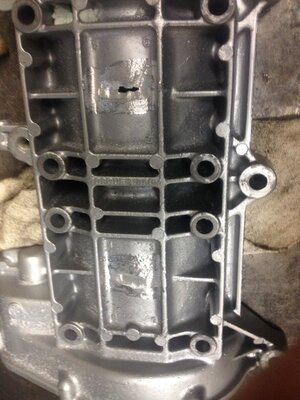

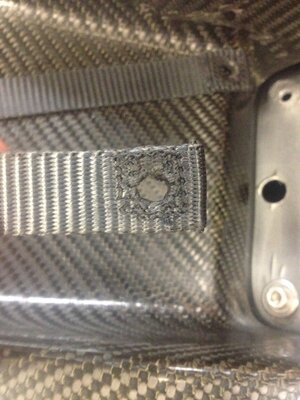

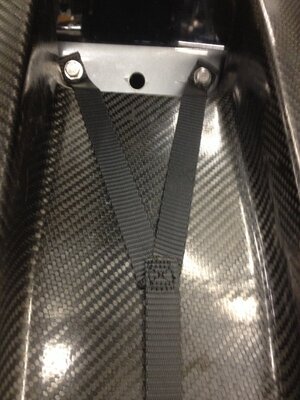

What a lovely friday at the shop. Just sittin there drueling!

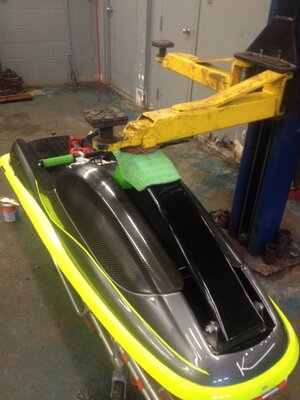

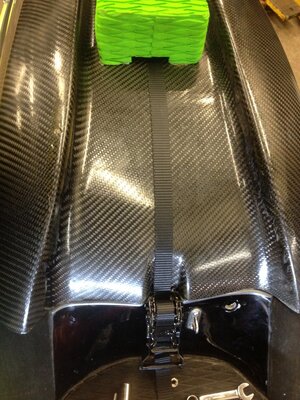

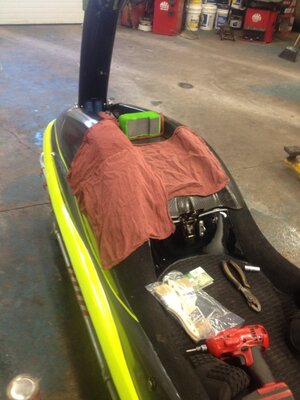

I glued my pole pad onto my hood today, how to properly glue your pad onto your ski. Use the hoist to put pressure on the pole to get er to stick!


Th3g3rm4n4t0r

Th3g3rm4n4t0r

Brawlin' n Flippin'
Location
Ajax, Ontario, Canada

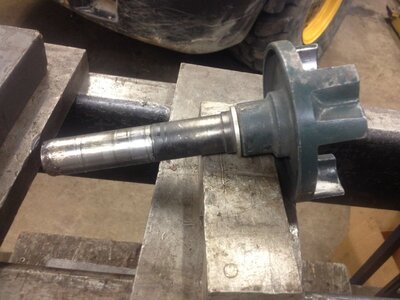

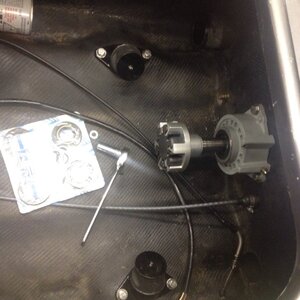

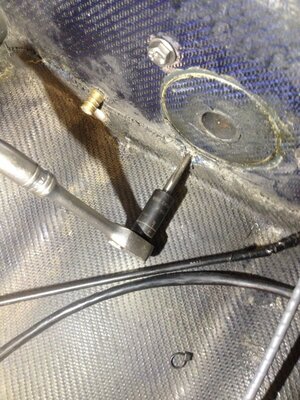

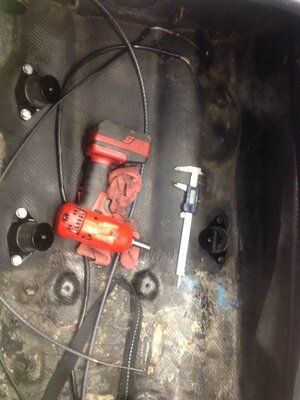

Turned my midshaft tonight, had to cut it back a little bit. Brand new WSM Midshaft housing and ADA Couplers

Yes i installed the midshaft that way cause i wanted the grease fitting facing that way lol. For the record i have absolutely no problem with WSM stuff, there cranks are really good!
